The easy-adjust seat depth takes the stress out of finding the correct seat depth and ensures the user gets fully vertical for proper range of motion in the hips, knees and ankles thus maximizing the benefits of standing. After loosening the seat depth adjustment knob, simply push the roller bearing button and push or pull the back to adjust the seat depth 2 inches at a time. After the correct seat depth color is located, it is important to once again tighten the seat depth adjustment knob. Cannot be ordered off unit.

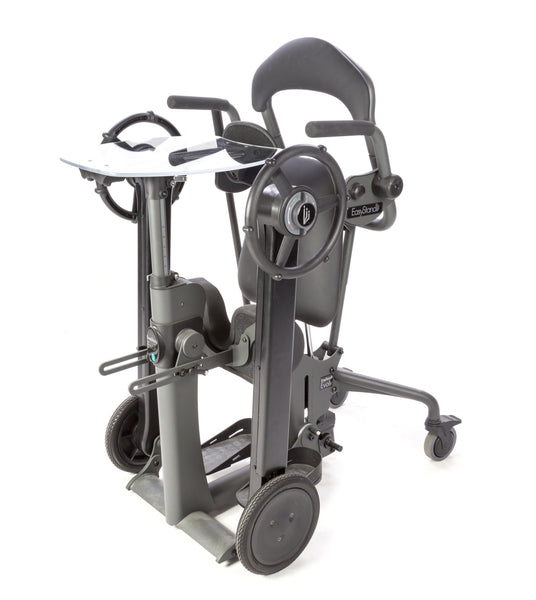

The mobile option enables independent mobility while standing for individuals who have the strength and ability to propel a manual wheelchair. Easily maneuverable across hard services, this option provides a solution for those seeking the medical benefits of standing but simultaneously want to be mobile and engaged in activities for daily living. Flip-up knees and forward swinging push rims make lateral transfers simple, while the tray and front pad provide upper-body support. The tray can be ordered with height adjustment, height and angle adjustment or as a no tray chest pad. The No Tray Chest Pad which provides easier access to hard to reach areas. The mobile option can be ordered with all sizes of the EasyStand Evolv and the Bantam Small/Extra Small.
Locking casters allow for easier steering and movement of stander. Replaces front wheels. Extends footprint to 28"x36" (71x91cm). Not available with Mobile option.
PNG50483 - Front Swivel Casters for Swing-Away Front
Locking casters allow for easier steering and movement of stander. Replaces front wheels. Extends footprint to 28"x36" (71x91cm). Not available with Mobile option.

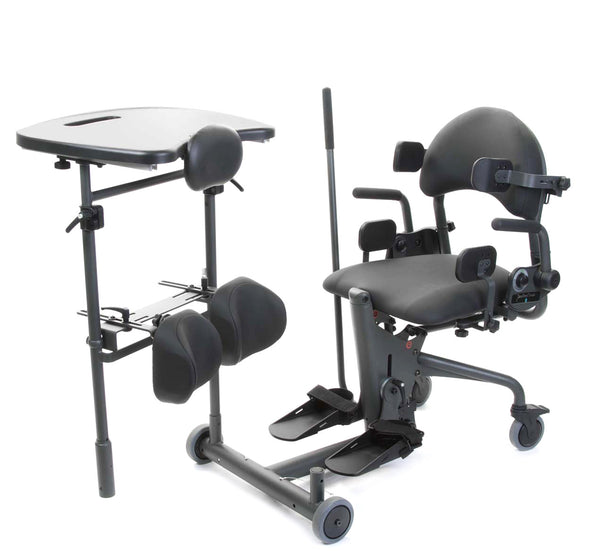

Allows the tray and knee pads to swing away with minimal lifting, providing more room for assisted transfers. Includes black molded tray. Not available on XT or Mobile.
PNG50428 - Swing-Away Front for Shadow Tray (tray required)
Allows the tray and knee pads to swing away with minimal lifting, providing more room for assisted transfers. Includes black molded tray. Not available on XT or Mobile.
The pow’r up lift raises the user to a standing position with the touch of a button. It provides an alternate lifting mechanism to the manual hydraulic actuator for those without adequate strength or dexterity. The comfortable sit to stand transition and the ability to stop in partial standing and acclimate to position changes remains unchanged when adding the pow’r up lift. Included with the lift is a rechargeable battery, push-button pendant, and an emergency release in case the battery loses power in the standing position.
Attaches to the actuator handle for users with limited dexterity. Adjusts for various hand sizes. Not available with Pow'r Up Lift. Hydraulic actuator required.
Attaches to the actuator handle for users with limited range of motion. Makes the first few pumps easier and descending more accessible. Adds additional 7" (18cm) in each direction. Not available with Pow'r Up Lift. Hydraulic actuator required.

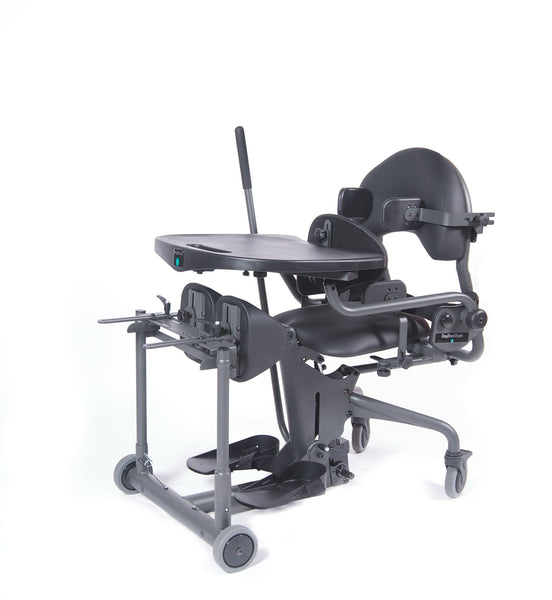

The Adjustable Shadow Tray is exclusive to EasyStand products and provides constant anterior support by shadowing an individual throughout the sit to stand transition. The shadow tray easily flips up with the lock and release system providing an open base when transferring. The tray includes a chest pad, but a large, contoured chest pad is also available. This option can be adjusted in back to tray depth from 4"-20" and seat to tray height from 7"-12". The new Adjustable Shadow Tray is also retrofittable and available for the Evolv Medium, Large and XT. This option provides a solution to changing needs for an individual and offers better support with height and depth adjustment, making it a perfect choice for home or multi-user facilities. Not available with mobile.
The Clear Adjustable Shadow Tray is exclusive to EasyStand products and provides constant anterior support by shadowing an individual throughout the sit to stand transition. The shadow tray easily flips up with the lock and release system providing an open base when transferring. The tray includes a chest pad, but a large, contoured chest pad is also available. This option can be adjusted in back to tray depth from 4"-20" and seat to tray height from 7"-12". The Clear Adjustable Shadow Tray is also retrofittable and available for the Evolv Medium, Large and XT. This option provides a solution to changing needs for an individual. It offers better support with height and depth adjustment, making it a perfect choice for home or multi-user facilities. The New Height/Depth adjustable shadow tray covers the entire height range of the previously available 7", 10" and 12" shadow trays. The height range is 6"-11" (15-27cm) from the seat. The depth range is 4"-20" (10-20cm) measured from the back to the front pad. Tray size is 21"Lx24"W (53x61cm). Not available with mobile.
Provides user with a tray surface and anterior support in the standing position. Includes chest pad, adjustable in depth and height. Tray size is 21"x24" (53X61cm).
The Black Molded Angle Adjustable Tray for Swing-Away provides anterior U/E support and a functional or educational support surface for activities, ect. Angle adjustable tray adjusts form 0-35° to provide u/e support and change of angle to address functional or educational activities. Adjusts from 0-35° to provide forearm support and angle activities closer to the user. Tray size is 21"x24" (53x61cm).
PNG50489-1 - Clear Angle Adjustable Tray for Swing-Away
Attaches to tray or no-tray bracket to provide anterior support. Replaces standard chest pad. Oval pad is 9.5"Hx15"W (24x38cm). Not available with elbow pad.
A removable padded tray cover with drawstring that attaches to the black molded, clear, angle adjustable, or shadow tray. Not available for the narrow clear tray.
Width range from center to center is 9"-13.5" (24-34cm). Depth range from front of seat is 1"-7.5" (3-19cm). Height range is +5" to -5.25" (+13 to -13cm) from seat pivot. Not available with Mobile.
Roho® Dry Floatation® technology. Width range from center to center is 9"-13.5" (24-34cm). Depth range from front of seat is 1"-7.5" (3-19cm). Height range is +5" to -5.5" (+13 to -13cm) from seat pivot. Not available with Mobile.
Width range from center to center is 9"-13.5" (24-34cm). Depth range from front of seat is 1"-7.5" (3-19cm). Height range is +5" to -5.25" (+13 to -13cm) from seat pivot.
PNG50426-1 - Independent ROHO® Knee Pads for Swing-Away
Roho® Dry Floatation® technology. Width range from center to center is 9"-13.5" (24-34cm). Depth range from front of seat is 1"-7.5" (3-19cm). Height range is +5" to -5.5" (+13 to -13cm) from seat pivot.
Velcro® and D-ring adjustment hold feet in alignment with two attachment slots for proper foot positioning. Straps measured in length over top of foot, with approximately 1.5" (4cm) of Velcro® overlap.
Velcro® and D-ring adjustment hold feet in alignment with two attachment slots for proper foot positioning. Straps measured in length over top of foot, with approximately 1.5" (4cm) of Velcro® overlap.
Rotating disk is embedded in the seat to reduce shear while swinging the user’s legs into place. It rotates 90° to the left or right and locks in place.
Supports the hips in symmetrical alignment from sitting to standing. When used on a Medium the width range is 9"-15" (23-38cm). When used on a Large the width range is 10"-15" (25-38cm). Pad size is 4"x6" (10x16cm).
Supports the hips in symmetrical alignment from sitting to standing. When used on a Medium the width range is 11"-17" (28-43cm). When used on an Large the width range is 12"-17" (30-43cm). Pad size is 4"x6" (10x16cm). Limited adjustment with Shadow Tray.
2" (5cm) wide positioning belt has a D-ring Velcro® closure, provides hip stability for user. Fits hip circumference of 26"-55" (66-140cm). Back required.
2" (5cm) wide positioning belt has a D-ring Velcro® closure, provides hip stability for user. Fits hip circumference of 26"-55" (66-140cm). Back required.
PNG30028 - Positioning Belt with Airline Style Buckle
2" (5cm) wide positioning belt provides hip stability with the security of an airline style buckle. Fits hip circumference of 26"-55" (66-140cm). Back required.
Velcro® and D-ring adjustment. Chest strap pad is 5"Wx19"L (13x48cm). Fits users with chest measurement ranging from 30"-46" (76-117cm). Back required.
Velcro® and D-ring adjustment. Chest strap pad is 5"Wx24"L (13x61cm). Fits users with chest measurements ranging from 34"-54" (86-137cm). Back required.
Velcro® and D-ring adjustment. Chest strap pad is 5"Wx24"L (13x61cm). Fits users with chest measurements ranging from 46"-66" (116-167cm). Back required.
Multiple adjustments, removable for transferring. Depth range is 3" (8cm). Height range is 4"-12" (10-30cm). Pad size is 4"x6" (10x15cm). Back and accessories mounting bracket required.
PNG50176 - Lateral Supports with Curved Pads - 11" - 19.5" W
Multiple adjustments, removable for transferring. Depth range is 3" (8cm). Height range is 4"-12" (10-30cm). Pad size is 4"x6" (10x15cm). Back and accessories mounting bracket required.
Height range from seat with a 15" back is 21"-30" (53-76cm) and with a 19" tall back it is 23"-32" (58-81cm). Back and accessories mounting bracket required.
Height range from seat with a 15" back is 23"-32" (58-81cm) and with a 19" tall back it is 25"-34" (64-86cm). Back and accessories mounting bracket required.
Modular design makes the EasyStand Evolv the most versatile standing frame available. The base unit is functional for many users, however when more support is needed a wide variety of positioning options can be added to accommodate the most involved users.

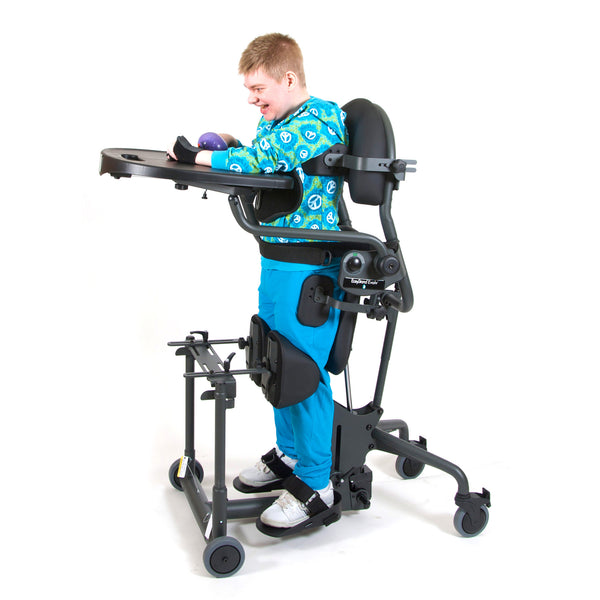

Evolv Medium Fits individuals from 4’0-5’6″ and up to 200 lbs. Seat Depth Range (from seat pivot) 14″-19″
The Standard EasyStand Evolv Includes:
Two 5" Rear Locking Casters
Two 5" Front Wheels
Manual Hydraulic Actuator with Handle
Black Upholstery
Transfer Handles
Modular The EasyStand Evolv is the most modular stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.
Positioning The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.
Accessibility & Independence The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.
Safety & Convenience The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.
Increasing Standing Compliance There are a number of excellent research studies documenting the benefits of standing programs for an individual’s long-term health. The EasyStand Evolv allows the user to stand in small bursts and yet still stand long enough to affect bone density and maximize other health benefits.
